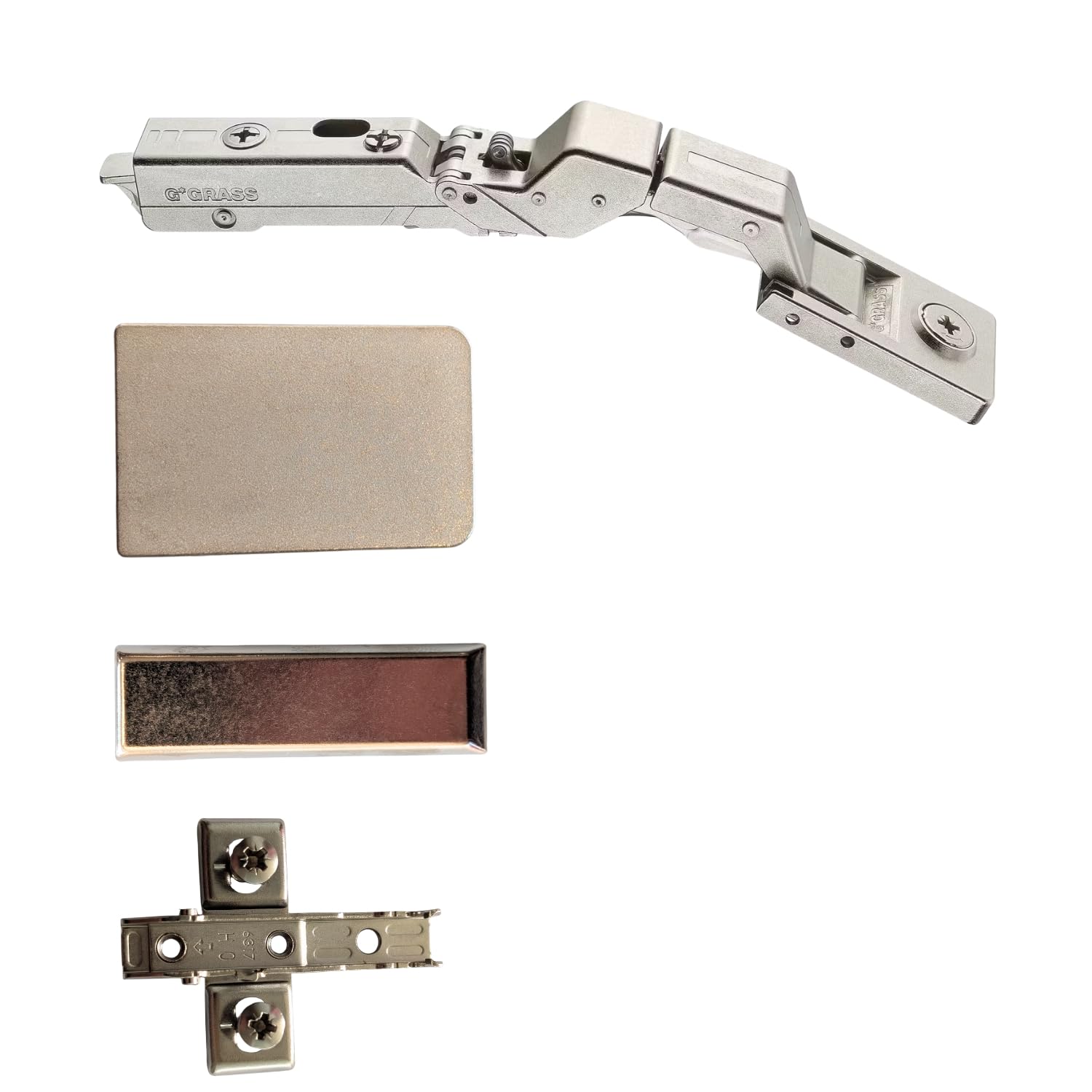

Gedotec Tiomos Mirro Concealed Hinge Nickel-Plated Glass Door Hinge for Mirror Doors and Glass Doors 2 Complete Sets Hinge with Damping Opening Angle 125° Pot Hinge Set with Accessories

Gedotec

Box contents: 2 x Tiomos Mirro hinges nickel-plated including 2 x cross mounting plates, 2 x cover caps, 2 x adapters, cranked hinged with damping for glass and mirror doors, pot and articulated arm made of sturdy metal, closes mirror and glass doors gently and in barely noticeable movement, especially gentle on the fragile door Important information: soft-close damping of the glass door hinge can be adjusted to 3 levels – please note the all-round 1.5 mm joint, otherwise risk of breakage – minimum joint F = 2 mm – valid for factory adjustment of the hinge, glass thickness from 3 to 8 mm with chamfered edges (R = 1 mm) and adhesive size Z of 4 to 26 mm Specifications: door hinge for glass thickness 3 – 8 mm – 125° opening angle – furniture hinge nickel-plated for glass, clear glass or mirror doors – door support up to 19 mm – no glass drilling required – side adjustment 2 mm, height adjustment -2.5 – 2.5 mm, depth adjustment -2 – 3 mm, height adjustment. over over mounting plate Mounting: clear glass hinge mounting by gluing a zinc die-cast adapter – then sliding the hinge and locking – mounting of the door to the body is done without tools by pressing (clip technology) onto the mounted grass mounting plate – hinge pot can also be easily attached to existing adhesive adapters Glass furniture hinge with unique kinematics, timeless design, trouble-free function and exceptionally long service life. Grass kitchen hinge surface: nickel-plated. TÜV-tested according to DIN EN 15570/08.08 regarding Strength and durability, Weight: 1.80338130316 Pounds, Manufacturer: Gedotec
