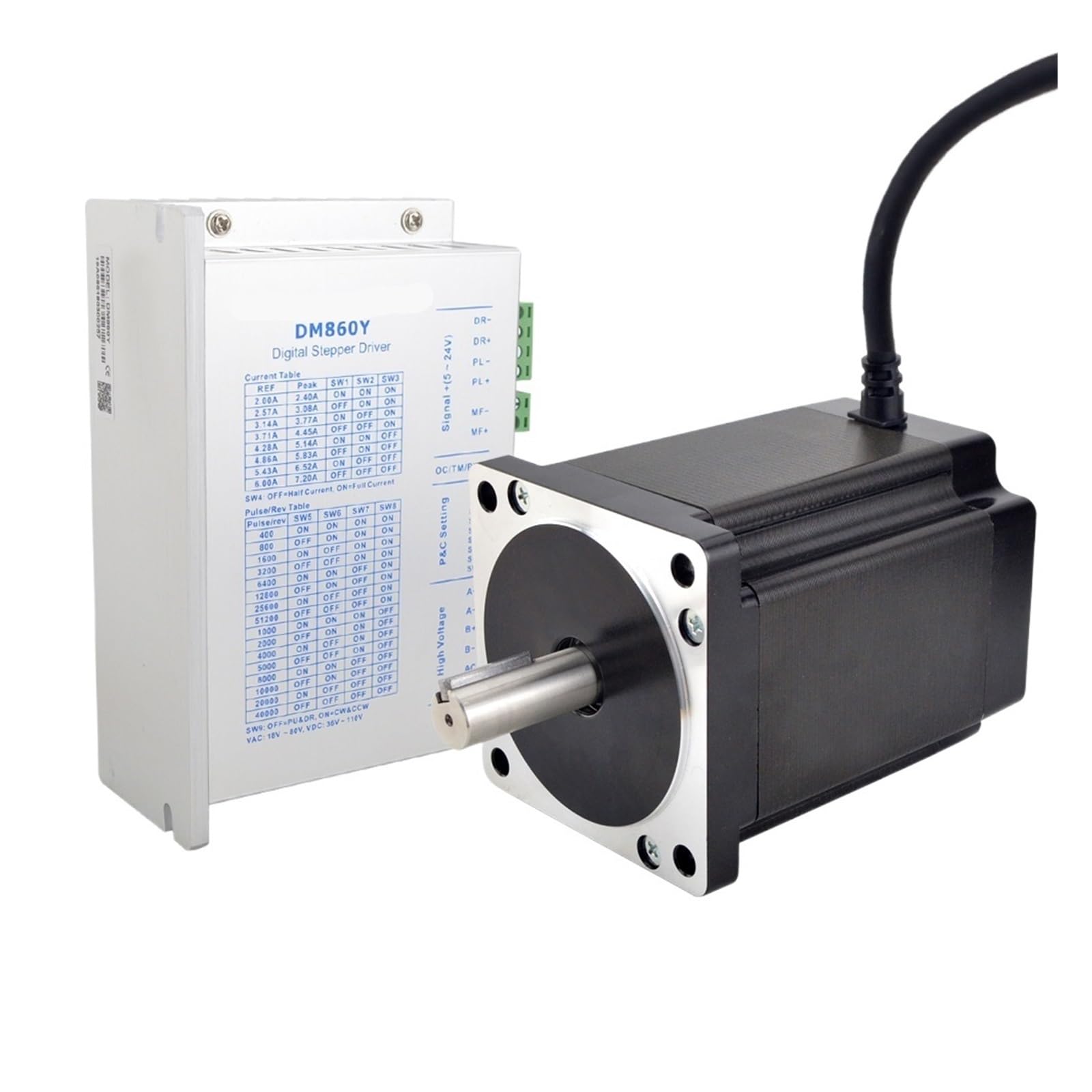

STEPPERONLINE 1 Axis Nema 34 Stepper Motor 8Nm Φ14mm 98mm 6A &Driver CNC Kit

Name: STEPPERONLINE 1 Axis Nema 34 Stepper Motor 8Nm Φ14mm 98mm 6A &Driver CNC Kit
Brand: StepperOnline

StepperOnline

--\n--\n--\n--\n--\n--\n\nThis CNC kit included:\n\n--1 x DM860I: Digital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Drive\n\n--1 x 34HS39-6004S: Nema 34 Stepper Motor 8.0Nm(1132.89oz.in) 6.0A 86x86x98mm 4 Wires\n\nMotor Specification\n\n--Manufacturer Part Number: 34HS39-6004S\n\n--Number of phase: 2\n\n--Step Angle: 1.8deg\n\n--Holding Torque: 8.0Nm(1132.89oz.in)\n\n--Rated Current/Phase: 6.0A\n\n--Phase Resistance: 0.55ohms\u00B1 10%\n\n--Inductance: 4.6mH\u00B120%(1KHz)\n\n--Frame Size: 86 x 86mm\n\n--Body Length: 98mm\n\n--Shaft Diameter: \u03A614mm\n\n--Shaft Length: 32mm\n\n--Keyway Shaft Length: 25mm\n\n--Number of Leads: 4\n\n--Lead Length: 500mm\n\nConnection\n\nA+\n\nA-\n\nB+\n\nB-\n\nBlack\n\nGreen\n\nRed\n\nBlue\n\nDriver Specification\n\n--Output Peak Current: 2.4~7.2A(6.0RMS)\n\n--Input Voltage: +20~80VDC\n\n--Logic Signal Current: 7~16mA(Typical 10mA)\n\n--Pulse Input Frequency: 0~200kHz\n\n--Pulse Width: 2.5\u03BCS\n\n--Isolation Resistance: 100M\.
