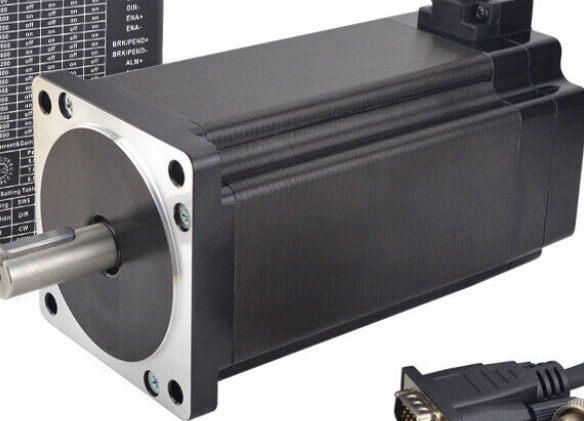

1 Axis Stepper CNC Kit 12Nm Nema 34 Stepper Motor & Driver & 60V Power Supply

Name: 1 Axis Stepper CNC Kit 12Nm Nema 34 Stepper Motor & Driver & 60V Power Supply
Brand: STEPPERONLINE

STEPPERONLINE

--\n--\n--\n--\n--\n--\nThis CNC kit included:\n\n--1 x Digital Stepper Driver 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Drive\n\n--1 x Nema 34 Stepper Motor Bipolar 1.8deg 12.0Nm(1699.68oz.in) 6.0A 86x86x151.5mm 4 Wires\n\n--1 x 350W 60V 5.9A 115/230V Switching Power Supply\n\nMotor Specification\n\n--Manufacturer Part Number: 34HS59-6004S\n\n--Number of phase: 2\n\n--Step Angle: 1.8deg\n\n--Holding Torque: 12.0Nm(1699.68oz.in)\n\n--Rated Current/phase: 6.0A\n\n--Phase Resistance: 0.7ohms\u00B110%\n\n--Inductance: 7.9mH\u00B120%(1KHz)\n\n--Frame Size: 86 x 86mm\n\n--Body Length: 151.5mm\n\n--Shaft Diameter: \u03A614mm\n\n--Shaft Length: 37mm\n\n--Keyway Shaft Length: 25mm\n\n--Number of Leads: 4\n\n--Lead Length: 500mm\n\nConnection\n\nA+\n\nA-\n\nB+\n\nB-\n\nBLK\n\nGRN\n\nRED\n\nBLU\n\n \nDriver Specification\n\n \nPower Supply\n\n--60V DC 5.9A output\n\n--AC input voltage range: 93~132V/176~264VAC\n\n--115V/230V AC selected by switch\n\n--High efficiency low cost\n)
