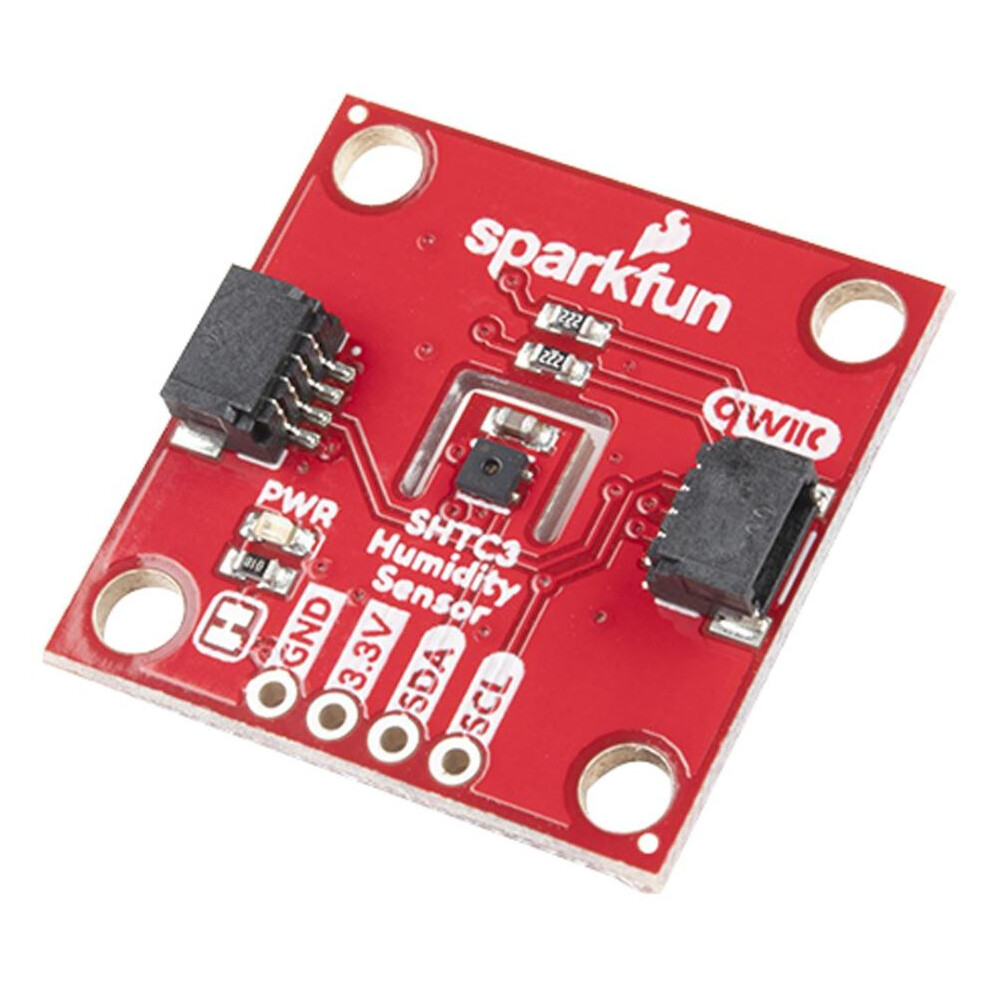

Sparkfun Electronics Qwiic Humidity Sensor Board, Shtc3

Name: Sparkfun Electronics Qwiic Humidity Sensor Board, Shtc3
Brand: SPARKFUN ELECTRONICS

SPARKFUN ELECTRONICS

Cost effective breakout board based around the SHTC3 sensor that delivers highly accurate digital humidity and temperature measurement, ideal for a climate control system or weather station project. The board is fitted with dual Qwiic connectors for faste Operating humidity range: 0% to 100% (Typical accuracy: ±2%RH) Operating temperature range: -40°C to +125°C (Typical accuracy: ±0.2°C) Built-in 2.2kohm pullup resistors for I2C communication Communicates using dual Qwiic connectors or via I2C pins I2C Interface address: 0x70 (Hardware defined) Operating voltage: 1.62-3.6V (typically 3.3V if using Qwiic cable) Board dimensions: 25.4x25.4mm Note: The I2C address is hardware defined as 0x70 - a multiplexer is required to connect multiple SHTC3 sensors to a single bus. Not compatible with the Qwiic Mux as it uses the same I2C address. Qwiic sensor board only
