Sparkfun Electronics Qwiic Micropressure Sensor Board, Mprls0025pa00001a

Name: Sparkfun Electronics Qwiic Micropressure Sensor Board, Mprls0025pa00001a
Brand: SPARKFUN ELECTRONICS

SPARKFUN ELECTRONICS

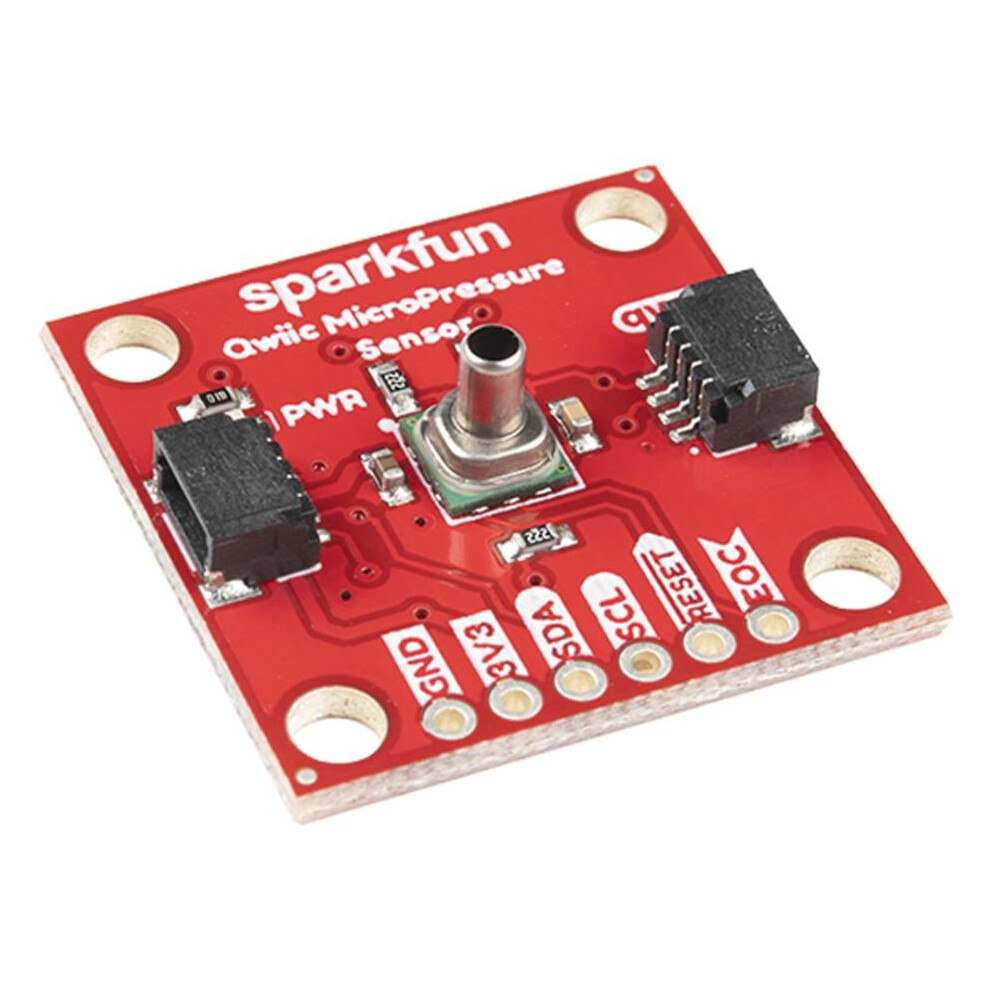

Compact breakout board equipped with a 25psi piezoresistive silicon pressure pressure sensor which can be calibrated and compensated using an on-board Application Specific Integrated Circuit (ASIC). The board is also fitted with dual Qwiic connectors for Provides a calibrated and compensated pressure sensing range of 60mbar to 2.5bar ±0.25% Accuracy 25psi Operating pressure 24-bit Digital I2C output (address: 0x18) Supply voltage: 1.8-3.6V Ultra low power consumption, as low as 0.01mW (typical) Board dimensions: 25.4x25.4mm Qwiic sensor board only
