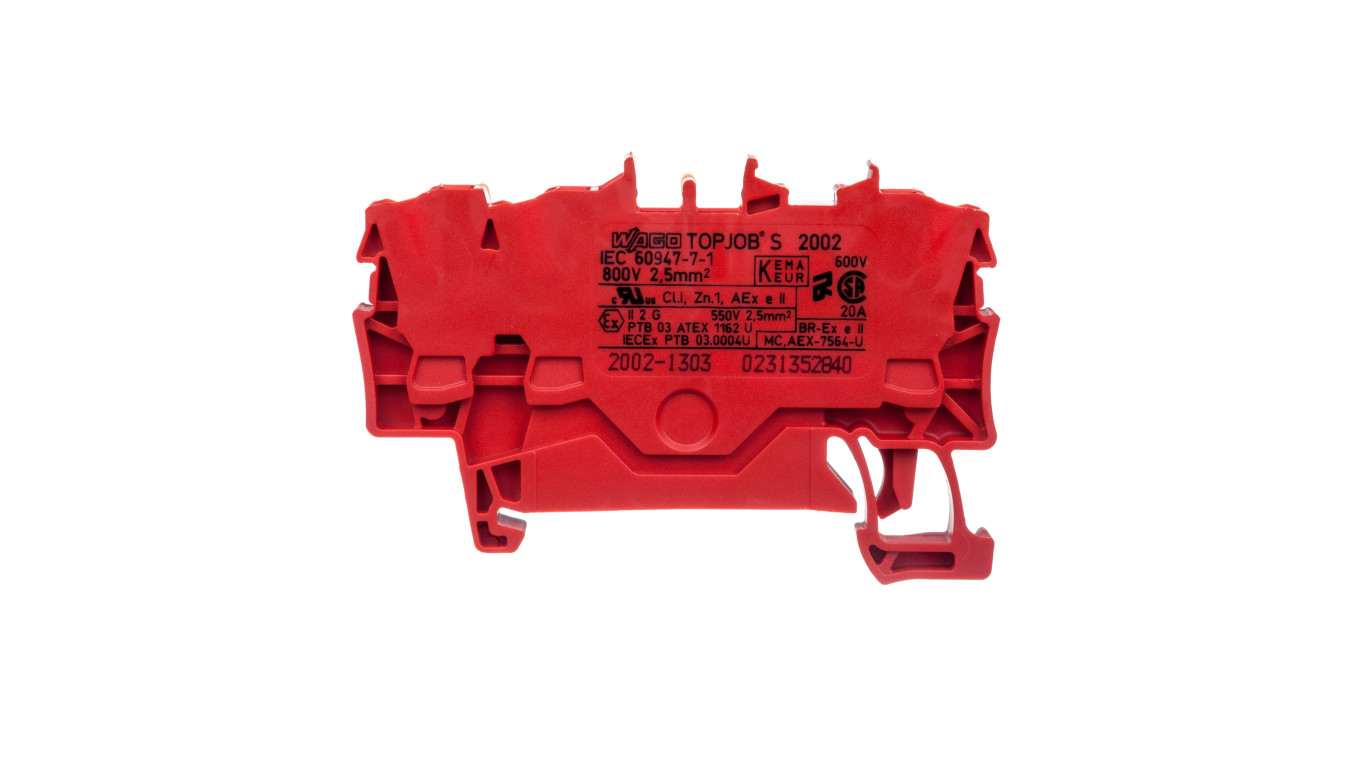

Rail Connector 3 Core 2.5mm² Red Topjobs 2002-1303

Name: Rail Connector 3 Core 2.5mm² Red Topjobs 2002-1303
Brand: WAGO

WAGO

PatKor\nProfessional industrial components\n\neBay offer\n\nShips from Poland\nTechnical Support\n\nRail connector 3-wire 2.5 mm\u00B2 red TOPJOBS 2002-1303\nWAGO\nMPN : 2002-1303\nEAN: 4044918081498\nHeight with lowest mounting type: 32,9000\nWidth / Size of Grid: 5.2000\nRated Current In: 24\n\nPrice per 1 pc\nTechnical parameters\nParametersValue\nLocking plate requiredYes\nExplosion-proof version \""EEx e\""Yes\nConnection PositionTop / Top\nType of Electrical Connection 1Spring Clamp\nBridged interior floorsNo\nType of InsulationThermoplastic\nColourRed\nMounting Type35mm DIN Mounting Rail\nHeight with lowest mounting type [mm]32,9000mm\nWidth / Size of Grid [mm]5,2000mm\nNumber of Levels1\nNumber of terminals per level2\nRated Current In [A]24A\nLength [mm]59.2mm\ncross section of the connected rope wire without sleeve tip [mm2] to2.5 mm\u00B2\nCross section of the connected rope wire without sleeve tip [mm2] from0.25 mm\u00B2\ncross section of the connected single wire cable [mm.
