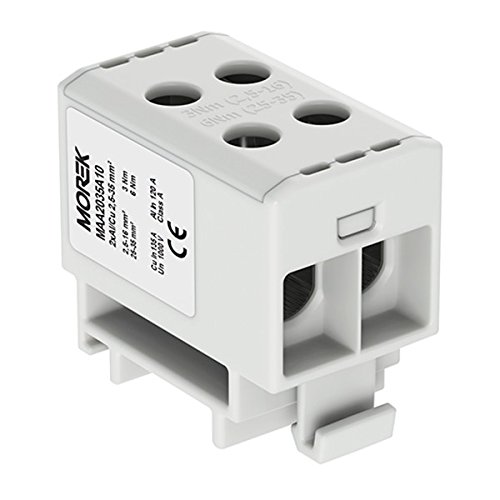

Distribution Block F. AL/CU Fits 4 x 2.5-35mm2 Grey 5 Pin 1000V AC/DC Insulated Clamp OTL 35-2 MAA2 035A10 MOREK 4030

Name: Distribution Block F. AL/CU Fits 4 x 2.5-35mm2 Grey 5 Pin 1000V AC/DC Insulated Clamp OTL 35-2 MAA2 035A10 MOREK 4030
Brand: MOREK

MOREK

Application: This distribution block is suitable for connecting ladders and copper aluminum; Poles: 1; Model: 4 x Al/Cu 2.5-35 mm² - Inlet/Output: 2/2; Cross section: 2.5 to 35 mm2 Rated Voltage: 1000V AC/DC, Rated Current: 2 x Al - 120A, 2 x Copper - 135A; Screws: 3Nm (2.5-16mm2), 6Nm Torque (25-35mm2) Mounting Type: DIN Rail or Mounting Plate, Allen Key Size 4 – Material: Body – Polyamide 66, Conductor Parts – Verzinnkt Aluminium, Aluminium Screws verzinnkt Colour: Grey; Weight: 44 g; Protection rating: IP20; betreibs Operating temperature: -25 °C to + 80 °C – Brennverha lten: UL 94 V – 0 Type: OTL 35-2 Halogen Free Reference standard/zulas sunge: EN 61238-1, EN 60947-7 1, EN 60998-2 in 1, CE
