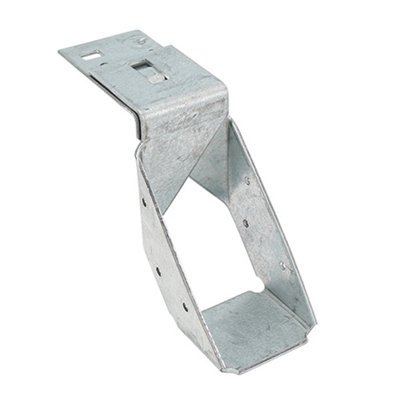

TimcoSingle Piece Masonry HangersGalvanised (Size 47 X 1001 Each) from B&Q

Name: TimcoSingle Piece Masonry HangersGalvanised (Size 47 X 1001 Each) from B&Q
Brand: Timco

Timco

Designed to support 47 x 100mm timber joists from brick or block walls. This single piece masonry hanger can be built into new masonry or used for renovation work by raking out existing brickwork, giving a secure and consistent joist bearing with a clean, dependable finish.. Key Features. Designed for supporting timber joists from brick or block walls.. Galvanised (pre-galvanised) steel for corrosion resistance.. Conforms to Eurocode 6 and service class 2.. Manufactured to BS EN 845-1:2013+A1:2016.. Straight top flange design.. No welds for a strong, consistent construction.. Safe working load: 5.4kN.. 6 nail holes (3.75mm) for secure fixing.. Supplied as a single unit (MOQ 10).. Typical Applications. Supporting floor joists built into brickwork and blockwork.. New-build masonry where hangers are built-in during construction.. Refurb work where existing masonry is raked out to install the hanger.. General timber-to-masonry support where a consistent joist bearing is required.. Specifications. Product. Single Piece Masonry Hanger – Galvanised. Product code. 47100MH. Joist size (W x H). 47 x 100mm. Width (W). 47mm. Height (H). 100mm. Bearing (B). 80mm. Nail holes. 6 (3.75mm). Safe working load. 5.4kN. CE standard. BS EN 845-1:2013+A1:2016. Corrosion rating (1–5). 2 – Occasionally damp/wet, rural and sheltered areas. Material. Carbon Steel. Finish. Galvanised. Pack type. Unit. Pack quantity. 1 Each. Packs Received. 10. Carton quantity (packs). 50
