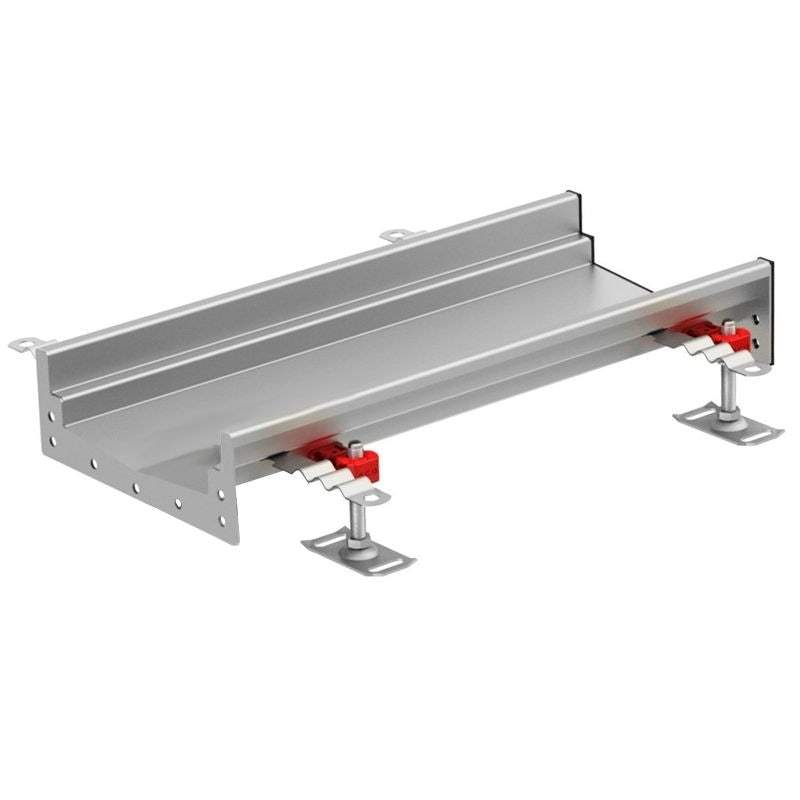

Aco Internal Channel Drain 50Mm Invert Branch Junction - Modular 125 Stainless Steel

ACO

All Channels are supplied complete with levelling feet, fixing ties, neoprene gasket and fixings. Please note: Channel Grating Bought Separately    Dimensions Length: 639mm x 500mm Width: 153mm Depth: 63mm Invert: 50mm Weight: 3.9kg Description The ACO Building Drainage Modular 125 stainless steel linear drainage system is a further development of the highly successful Modular Channel system. Taking full advantage of the significant investment in state-of-the-art manufacturing plant, ACO Building Drainage now can offer an improved performance, fully flexible stainless steel drainage system suitable for most applications off the shelf.     Fully tested and classified to BS EN 1433 - Drainage Channels for Vehicular & Pedestrian Areas     CeMarking indicating that Modular 125 has met the Essential Requirements of BS EN 1433:     Load bearing capacity     Water tightness     Durability     Vee-bottomed profiled channel for enhanced flow efficiency at low flow rates     Extended range of constant depth and sloping invert channels and accessories     Wide range of gratings, available with loading class A15 to C250 and including unique optional grating security locks     Vertical or horizontal gully option     Standard range of components available from stock Note: Modular 125 channel system is an off-the-shelf, stocked and manufactured in Grade 304 Stainless Steel. Modular 125 is available in 316 grade stainless steel only to order.. Internal Channel Drain 50mm Invert Branch Junction - ACO Modular 125 Stainless Steel
