Aco Internal Channel Drain 110Mm Invert Branch Junction - Modular 125 Stainless Steel
ACO

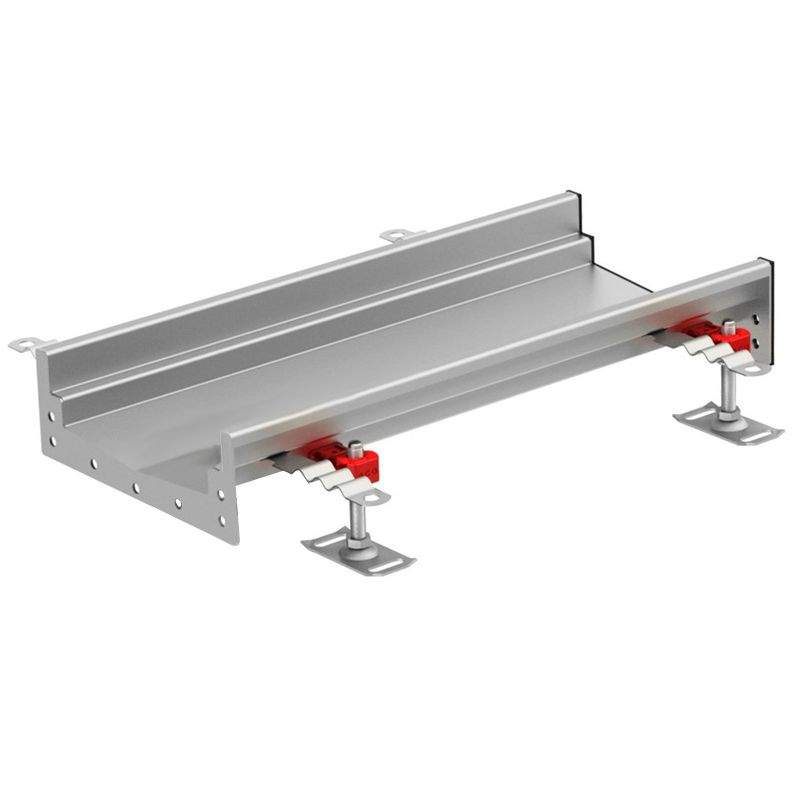

The Internal Invert Channel Drain Branch Junction is made from durable 304-grade Stainless Steel. It is part of ACO's enhanced Modular 125 range, improved from the popular Modular Channel system. Produced in an advanced manufacturing facility, this junction integrates with a flexible stainless steel drainage system for superior performance across most applications. It includes neoprene gasket, fixings, tiles, and levelling feet, and weighs 5.4kg. Dimensions are 639mm x 500mm, with a 153mm width, 123mm depth, and 110mm invert. ACO offers a variety of gratings with load classes A15 to C250 and unique optional grating security locks. This system is compliant with BS EN 1433 for vehicular and pedestrian areas. The Modular 125 channel is available in 304 stainless steel off-the-shelf, and 316 stainless steel by order, with Channel Grating purchased separately. Not suitable for suspended timber floors.. Internal Channel Drain 110mm Invert Branch Junction - ACO Modular 125 Stainless Steel
Compare prices (1 shop)
| shop | Price | Action |
|---|---|---|
|
350,00 GBP | Go to shop |
