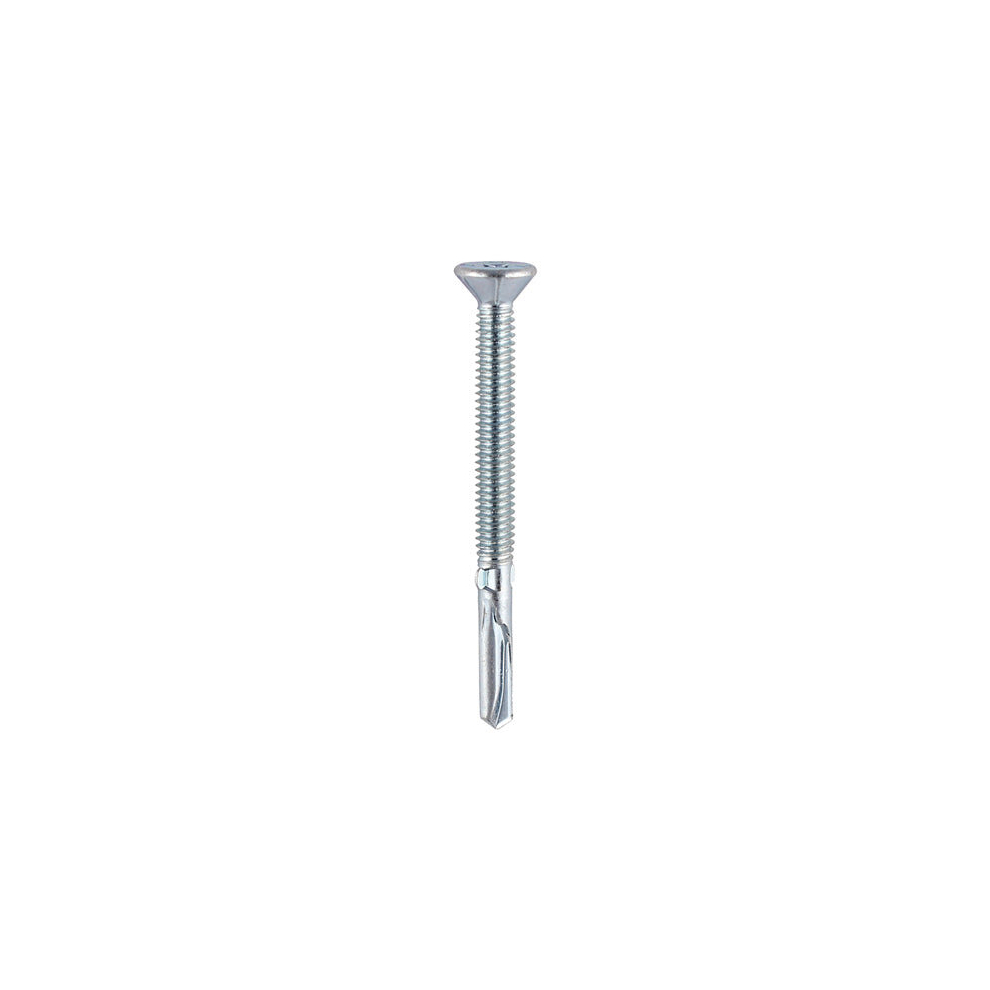

Timco Self-Drilling Wing-Tip Steel To Timber Light Section Silver Screws 5.5 X 150 from B&Q
Timco
Specifically designed to attach wood to light section steel (Max. 5mm). Coarse self-tapping thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. NOTE: Partially threaded.Corrosion Rating1 - Clean, dry & low humidity environmentsDescriptionSpecifically designed to attach wood to light section steel (Max. 5mm). Coarse self-tapping thread with wings designed to ream out the timber, so the screw can achieve Max. R.P.M. without burning out. When the wings hit the metal they will break off to permit the thread to self-tap into the metal. NOTE: Partially threaded.Drill Tip Angle degree110Drill Tip Length mm15.00Drill Tip Width mm4.50Driver Bit SizePH3Effective Thread Length mm61 *P/TFinishZincHead Dia. mm11.00Head Height mm5.00Head TypeCountersunk with RibsIncluded ItemsPH3 S2 Bit (Qty 1)Length mm150MaterialCase & Core Hardened Carbon SteelMax Drilling Thickness mm5.0Max Fixture Thickness mm128Max Torque Nm10Pack Dimensions L x W x H mm180 x 90 x 90Pack Weight kg1.938Point TypeSelf-Drilling No.3Product CodeLW150BRec RPM1,000 - 1,800Recess TypePhillipsSize mm5.5 x 150SubstratesSteel, TimberThread Dia. mm5.5Thread TypeCoarse Self-Tapping, *P/T = Partially ThreadedTo Suit Timber mm109 - 128Wing Tip Width mm7.00.
