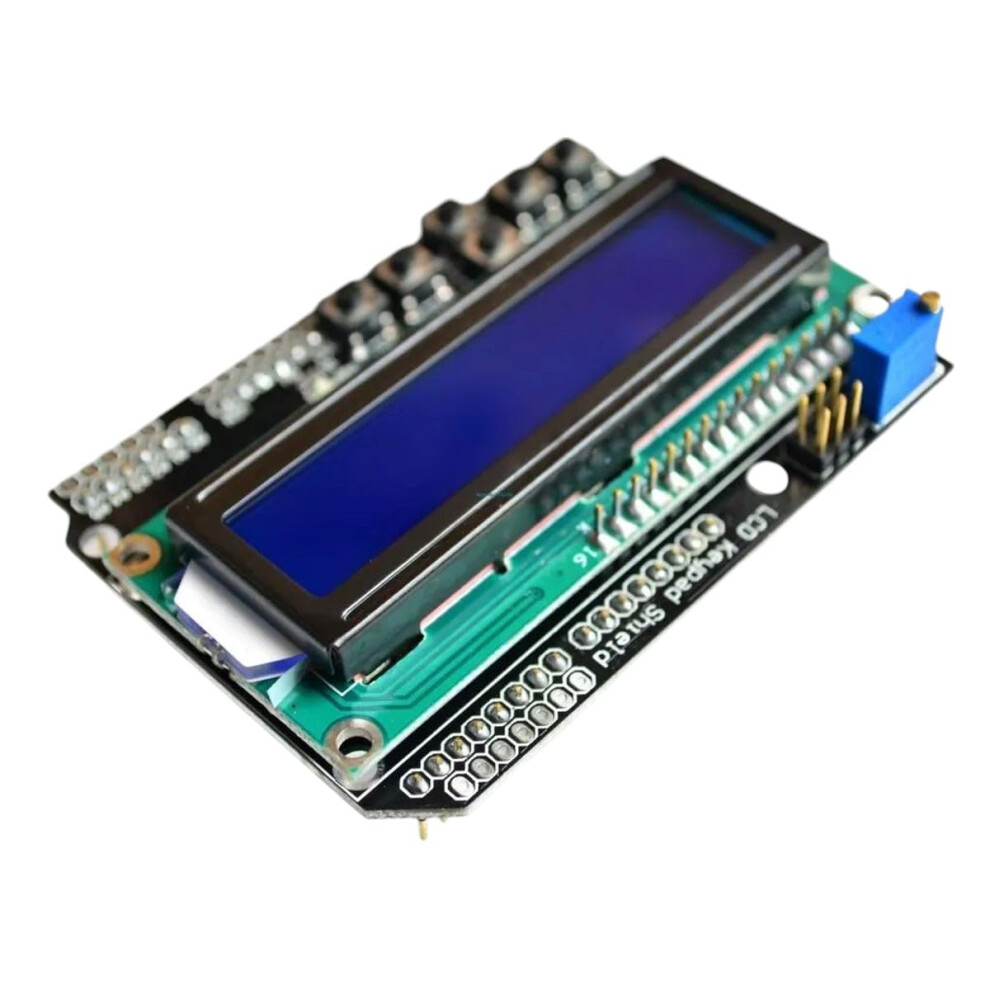

16x2 Blue LCD Display Keypad Shield Module for Arduino HD44780 Uno Mega
Switch Electronics
16x2 Blue LCD Display Keypad Shield Module for Arduino HD44780 Uno Mega\n\n16x2 Blue LCD Display Keypad Shield Module for Arduino HD44780 Uno Mega\n\n\u00A37.39\n\nAsk a question\n\nDescription\n\nShipping\n\nAbout Us\n\nDescription\n\nBlue 16x2 LCD keypad shield featuring 2 rows consisting each of 16 characters. The module features 6 push button switches,which allow you to move through menus and make selections straight from one board attached to your Arduino project. \n\n--White characters on blue background \n--Supply voltage: 4.5-5.5V DC \n--4 directional buttons, 1 select button, and a reset button \n--Pins 4, 5, 6, 7, 8, 9 and 10 are us\u00E9d to interface with the LCD \n--Just one Analog Pin 0 is us\u00E9d to read the push buttons \n--Onboard power LED indicator \n--Interface boards features a potentiometer to control the character brightness \n\nPin\nDescription\nAnalog 0\nPush buttons\nDigital 4\nData bit 4\nDigital 5\nData bit 5\nDigital 6\nData bit 6\nDigital 7\nData bit 7y
