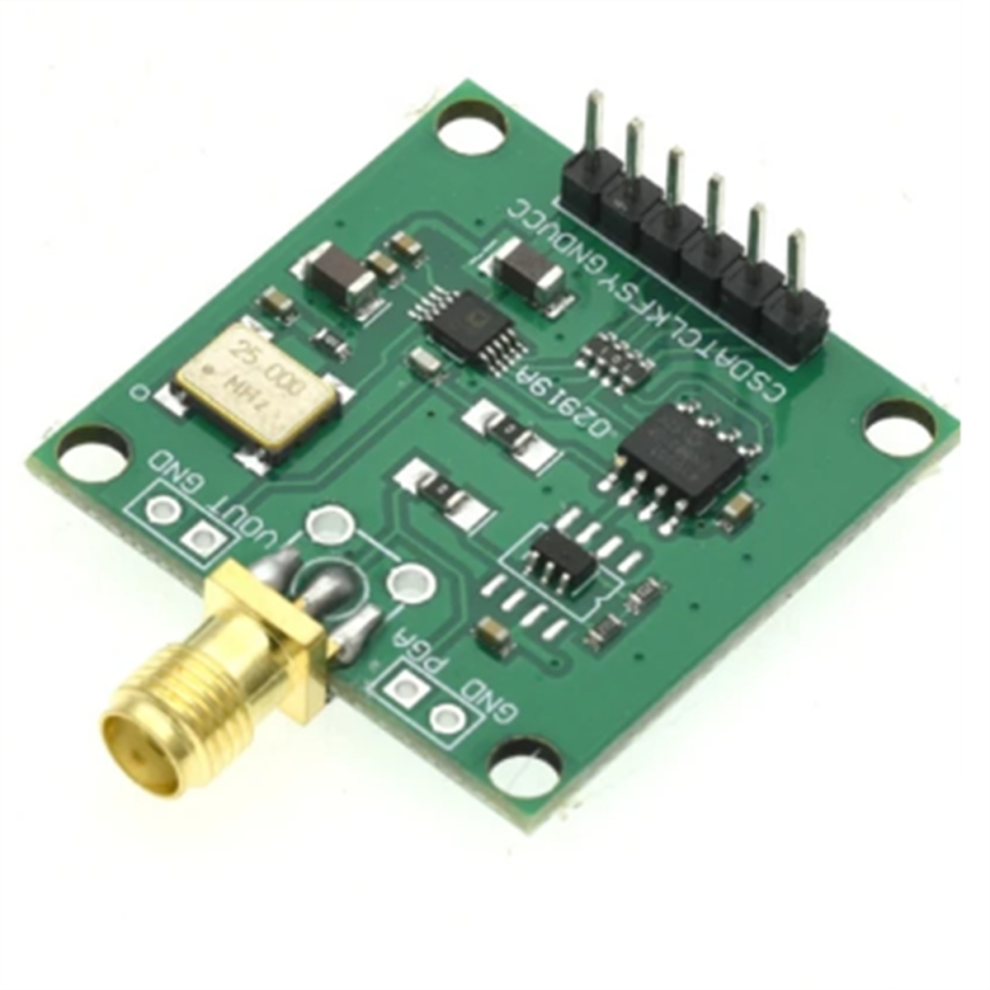

AD9833 Triangular Sinusoidal Square Wave Signal Source DDS Digital Signal Module
Q-BAIHE
Title\uFF1A\n\nAD9833 Module Triangular Wave Sine Wave Signal Source Square Wave \nGenerator DDS Digital Signal Synthesis Frequency Source Module\n\nSpecifications:\n\nModule model: AD9833\nModule type: digital synthesis frequency source\nModule power supply: DC 5V\nModule current: 10mA (MAX) Normal driving current: 8mA (TYP)\nModule communication protocol: STM32F103RCT6\nRoutine platform: STM32F103X-M3\nModule system main frequency: 25MHz (MAX)\nDAC rate bits: 10\nNumber of bits for phase accumulator: 28\nModule output interface: SMA\nModule output signals: sine wave, square wave, triangular wave\nModule output channel: 2-channel differential\nMaximum main frequency output sine wave signal range: 1Hz-9MHz\nMaximum main frequency output square wave signal range: 1Hz-1MHz\nOutput amplitude: sine wave 260mVpp (MAX) square wave 3.3Vpp\nOutput impedance: 200 ohms\nModule size: 70x50x12mm\n\nPackage:\n\n1x AD9833 Digital Signal Synthesis Frequency Source Module\n \n\nOn 28-May-2024 a:
Compare prices (2 shops)
| shop | Price | Action |
|---|---|---|
|
25,39 GBP | Go to shop |
|
|
39,74 GBP | Go to shop |
