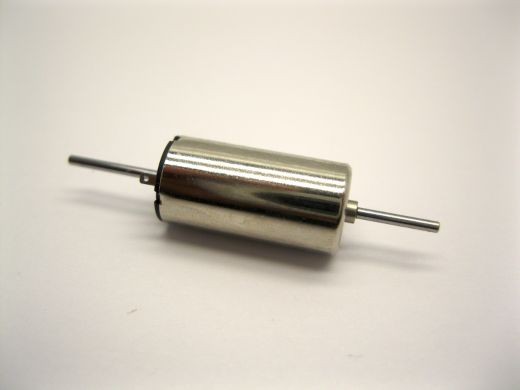

Micromotor.eu 1020DH -25800 Coreless Motor 10x 20mm Double shaft Highspeed 25800

Name: Micromotor.eu 1020DH -25800 Coreless Motor 10x 20mm Double shaft Highspeed 25800
Brand: Micromotor.eu

Micromotor.eu

--View our Shop\n--View our Feedback\n--Add to your Favourites\n--Ask us a QuestionProduct DetailsMicromotor.eu 1020DH -25800 Coreless Motor 10x 20mm Double shaft Highspeed 25800\n\nMicromotor.eu 1020DH -25800 Coreless Motor 10mm x 20mm - Double shaft High speed (25800 RPM) Shaft - 1.0mm Diameter / 7mm, 7mm Long Voltage \u2013 1-12 Volt No load speed \u2013 25800 rpm Rated speed \u2013 21500 rpm No load current \u2013 25 mA Rated current \u2013 230 mA Stall Current \u2013 1,6 A Rated torque \u2013 10 g.cm Stall torque \u2013 65 g.cm Screw Holes - None This motor has double metal bearings in stead of the cheaper available types! Uses B0815 shaft adapters Coreless Motor Information: Guarantee for 1 year Do not use with feedback controllers. Do not use with an analogue low frequency PWM ( Pulse Width Modulation ) Controllers. i.e. H&M Half Wave. DCC Frequency to at least 16 kHz (Preferred 32 kHz or higher) using the recommended correct coreless motor settings AS ADVISED by the manuf.
